ALLEN BRADLY SOFTWARE INTRODUCTION

Rockwell Automation is a global provider of industrial automation, power, control and information solutions. Allen Bradley is the brand-name of a line of Factory Automation Equipment manufactured by Rockwell Automation

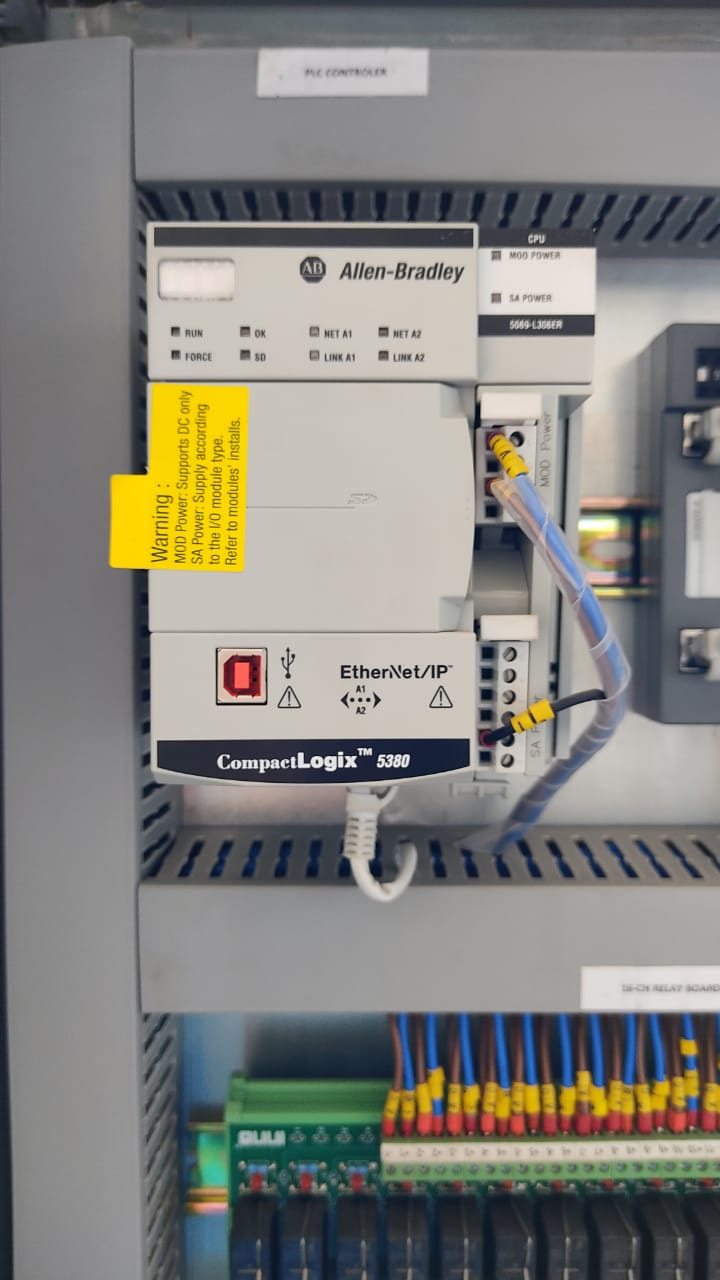

CONTROLLER DIGITAL I/O ANALOG I/O MEMORY BULLETT IN NUMBER PICO CONTROLLERS 40 1760 1761 1762 MICRO LOGIX 20K 1763 1766 1764 SLC 500 SYSTEM 8192 64K 1747 PLC-S SYSTEM 50176 512 10061771 Types of PLC's PLC5 CompactLogix S THE Micrologix 1500 M1500%ix ControlLogix SLC500 Micrologix 1000 Input terminals dc output terminals (or not used) Mounting hole Input LEDS Status LEDS RS-232 communication channel Output LEDS Power supply line power. MICROLOGIX * Micrologix 1000 Micrologix 1100 * Micrologix 1200 Micrologix 1400 Micrologix 1500. SLC Memory Built-in Ports Additional Features Controller Maximum 1/0 SLC 5/01 4k 960 DH-485(cannot initiate messages) Basic set of 51 instructions SLC 5/02 4x 4096 DH-485 Expanded instruction set, faster scan timers, extensive diagnostics fro more complex application SLC 5/03 3K 4096 DH-485, RS-232-C (ASCHI or DFI)

Connects to external intelligent devices using the RS-232 port, without additional modules SLC 5/04 64 K 4096 DH+, RS-232-C (ASCHIOR DFI) Direct connection to PLC 5 controllers SLC 5/05 64K 4096 Ethernet, RS-232 Ethernet supports program upload and download, on-line editing. Data Type's Date Type Leth USAGE Status Corner 1 bit 16 bits Can only have Values and Could have values - 32768 to 32767 Integer Word 16 Double Integer 32 bits Could have values - 2147483645 to 2147483647. MEMORY ORGANIZATION (FILE ORGANIZATION) • The processor provides control through the use program we created. The program and its components needed some space. This area is known as processor files. FILE Organization • Processor files consists of two components. Program Files Data Files. Timer Timer having 3 word element and 3 Bit elements. Addressable Words Word 0: Status bit Word 1: Preset value (T4:0.PRE) Word 2: Accumulator value (14:0.ACC) Addressable Bits Enable bit (T4:0EN) Timer Timing bit (T4:0 TT) Done bit (14:0/DN). Counter Counter having 3 word element. Addressable Words Word 0 : Status bit Word 1 : Preset value (C5:0. PRE) Word 2: Accumulator value (C5:0.ACC) Addressable Bits Count up bit (C5:0/CU) Countdown bit (C5:0/CD) Done bit (C5:0/DN) Over flow bit (C5:0/OV). Binary, Integer, Float. Binary B3:0/0 ( Bit Level) B3:0 (Word Level Integer N7:0/0 ( Bit Level) N7:0 (Word Level) Float F8:0 (Word Level). SOFTWARE Rx Linx Classic. Communication Software. Rx Logix 500 English. Programming Software. Rx Emulate 500. Simulation Software
